Latrolet Pipe Fittings

USD102 USD100

Carbon Steel Latrolet 8"X"3" STD GB5310 20G Material

SKU: CZ516 Category:
General Details

Latrolet Suppliers

We stock abundant of Sockolet, Threadolet, Weldolet, Nipolet, Latrolet, Elbolet and Flanged Olet, which available in carbon steel and stainless steel.

As a quality manufacturer and exporter of forged fittings, we supplied Latrolet and Weldolet 8″ x 3″ STD BW GB5310 20G for Pakistan. They are shipped with 90 degree elbows, 45 degree elbows in material of 12CR1MOVG.

What is Latrolet?

It is used for taking branch which comes in a 45°or any other special degree as required by customer. There are three connecting way that butt welded, socket welded and threaded.

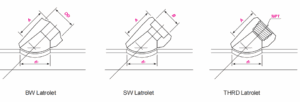

Latrolet Dimensions

Latrolet Dimensions

Latrolet Dimensions

Standard: MSS-SP-97, ASME B16.11, GB5310

Run Pipes diameter range: DN20– 900 / NPS3/4 – 36

Branch diameter range: DN15-300/ NPS 1/2-12

Pressure rate: 3000# and 6000#, STD, XS and Sch 160

Type: Butt Weld, Socket Weld, Threaded

Thread: BSPP , BSPT , NPT, PT, PF

Surface: Anti-rust Oil or Galvanized

Material Grades of STD Pipe Fittings

Duplex Steel: ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760, S 32950

Stainless Steel: ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321

Carbon Steel : ASTM A105, A694 F52, F60, F65, F70, A350 LF2, LF3

Alloy Steel : ASTM A182 F1, F5, F9, F11, F12, F22, F91

BW Latrolet Weight Chart

BW Latrolet Weight Chart

BW Latrolet Weight Chart

Olet Pipe Fittings

We marked all Forged Fittings with Grade, Lot No, Size, Standard and Pressure. The workers surfaced all 8″ x 3″ Olet Pipe Fittings with anti-rust oil, sleeved them into plastic bag individually, then packed them in carton and wooden cases, finally bundled packages with nylon rope.

Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. great care is taken during operation and transportation.

Inspection

  1. Visual the surface of carbon steel outlet body. Such as dents, die marks, porosity, undercuts etc.
  2. Check the marking. Such as Size, Material Code, Grade, Thickness, Heat No.
  3. Measure dimensions of latrolet. Such as diameter, wall thickness, and end to end length.

Advantages

  • Good Quality
  • Fast Delivery
  • Safe Package
  • Abundant Stock
  • Reasonable Price
  • Reliable Shipment
Technical Info

GB5310 20G Boiler Pipe and Fittings

Chemical Composition

C Mn Si P S Cr Mo
0.17-0.23 0.7-1.0 0.17-0.37 0.03 0.03 0.2 0.15

Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 240 (Mpa) 22 (%)
