Full Coupling 3000
USD22 USD20
2 Inch Class 3000 Socket Weld Full Coupling ASTM A182 F11 ASME B16.11
- General Details
- Technical Info
- DWG & SPEC
- Documents
- Related Products
Full Coupling Socket Weld
Forged Socket Weld Full Coupling is available in Class 3000 lbs, 6000 lbs and 9000 lbs, the specification in conform to standard of ASME B16.11 & EN10241.
SW Couplings supply a sealed and stable joint for pipes with different dimensions. They are irreplaceable in small diameter pipe systems with moderate and high temperature and pressure conditions.
Socket Weld Full Coupling Dimensions
Standard: ASME/ANSI B16.11, BS3799, EN ISO 4144
Size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure Ratings: 3000 LB, 6000 LB, 9000 LB
Type: Straight Coupling and Reducer Coupling
Form: Socket Weld and Threaded Coupling
Surface: Anti-rust Oil and Galvanized
Class 3000 Full Coupling Weight
Steel pipe coupling in class 3000 is available in both socket weld and screw types, but the weight is different.
DN | NPS | THD | SW |
6 | 1/8 | 0.06 | 0.06 |
8 | 1/4 | 0.08 | 0.06 |
10 | 3/8 | 0.11 | 0.08 |
15 | 1/2 | 0.22 | 0.14 |
20 | 3/4 | 0.3 | 0.2 |
25 | 1 | 0.55 | 0.28 |
32 | 1 1/4 | 0.86 | 0.48 |
40 | 1 1/2 | 1.26 | 0.52 |
50 | 2 | 1.65 | 1 |
65 | 2 1/2 | 3 | 1.6 |
80 | 3 | 4.25 | 1.8 |
100 | 4 | 7.8 | 2.8 |
Material Grades of 2 Pipe Coupling
Stainless Steel Grades
ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Carbon Steel Grades
ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel Grades
ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Grades
ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760, S 32950

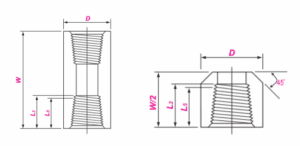

Full Coupling VS Half Coupling
The difference between full coupling and half coupling are the length and ends. Full coupling has both socket weld end, while half coupling has one socket weld end and one plain end.
Class 3000 Pipe Fittings
Standard
Class 3000 LB pipe fittings are conformed to specification of ASME B16.11, BS3799, MSS SP 75, MSS SP 83, MSS SP 95. There are steel pipe coupling, plug, cap, bushing, nipple, elbow, tee and cross.
Package
We marked all Alloy Steel Forged Fittings with Grade, Lot No, Size, Standard and Pressure. The workers will sleeve ASTM A182 F11 socket weld full couplings 3000 LB into plastic bag individually, put them in cartons and wooden cases, finally bundled wooden cases with nylon rope.
Inspection
Visual the surface of socket weld coupling body. Such as dents, die marks, porosity, undercuts.
Measure dimensions. Such as diameter, wall thickness, and dimensions of the socket.
Check the marking of branch outlet fittings. Such as size, material code, grade, pressure, heat no.
ASTM A182 F11 Properties
Drawing & Specification for B16.11 Socket Weld Coupling
Nominal Size | Socket Bore Dia. | Bore Dia. of fittings | Socket Wall Thickness | Depth of Socket | Laying Lengths | Laying lengths | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DN | NPS | B | D | C | Jmin | E | F | |||||||
3000 | 6000 | 9000 | 3000 | 6000 | 9000 | |||||||||
ave | min | ave | min | ave | min | |||||||||
6 | 1/8 | 10.9 | 6.1 | 3.2 | / | 3.18 | 3.18 | 3.96 | 3.43 | / | / | 9.5 | 6.5 | 16.0 |
8 | 1/4 | 14.3 | 8.5 | 5.6 | / | 3.78 | 3.30 | 4.60 | 4.01 | / | / | 9.5 | 6.5 | 16.0 |
10 | 3/8 | 17.7 | 11.8 | 8.4 | / | 4.01 | 3.50 | 5.03 | 4.37 | / | / | 9.5 | 6.5 | 17.5 |
15 | 1/2 | 21.9 | 15.0 | 11.0 | 5.6 | 4.67 | 4.09 | 5.97 | 5.18 | 9.53 | 8.18 | 9.5 | 9.5 | 22.5 |
20 | 3/4 | 27.3 | 20.2 | 14.8 | 10.3 | 4.90 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 12.5 | 9.5 | 24.0 |
25 | 1 | 34.0 | 25.9 | 19.9 | 14.4 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 12.5 | 12.5 | 28.5 |
32 | 1 1/4 | 42.8 | 34.3 | 28.7 | 22.0 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 12.5 | 12.5 | 30.0 |
40 | 1 1/2 | 48.9 | 40.1 | 33.2 | 27.2 | 6.35 | 5.54 | 8.92 | 7.80 | 12.70 | 11.12 | 12.5 | 12.5 | 32.0 |
50 | 2 | 61.2 | 51.7 | 42.1 | 37.4 | 6.93 | 6.04 | 10.92 | 9.50 | 13.84 | 12.12 | 16.0 | 19.0 | 41.0 |
65 | 2 1/2 | 73.9 | 61.2 | / | / | 8.76 | 7.62 | / | / | / | / | 16.0 | 19.0 | 43.0 |
80 | 3 | 89.9 | 76.4 | / | / | 9.52 | 8.30 | / | / | / | / | 16.0 | 19.0 | 44.5 |
100 | 4 | 115.5 | 100.7 | / | / | 10.69 | 9.35 | / | / | / | / | 19.0 | 19.0 | 48.0 |
